RE: About rosettes   You are logged in as Guest
Users viewing this topic: none
  Printable Version
All Forums >>Discussions >>Lutherie >> Page: <<   <   1 2 [3] 4    >   >>
Login
Message<< Newer Topic  Older Topic >>

Andy Culpepper

Posts: 3002
Joined: Mar. 30 2009
From: NY, USA

RE: About rosettes (in reply to Randy Reynolds

The Esteso rosette that Orson posted has been in the back of my mind since this thread.
These are not copies of it by any means but a couple of rosettes I've done recently that were inspired by that one.



Images are resized automatically to a maximum width of 800px

Attachment (1)

_____________________________

Andy Culpepper, luthier
http://www.andyculpepper.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Mar. 1 2012 23:43:03

Andy Culpepper

Posts: 3002
Joined: Mar. 30 2009
From: NY, USA

RE: About rosettes (in reply to Andy Culpepper

and a bit more colorful one... this was for kind a of a special guitar, a commission from my luthery teacher, more on that later (it's an amazing guitar)



Images are resized automatically to a maximum width of 800px

Attachment (1)

_____________________________

Andy Culpepper, luthier
http://www.andyculpepper.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Mar. 1 2012 23:44:42

Ramon Amira



Posts: 1025
Joined: Oct. 14 2009


[Deleted]

Post has been moved to the Recycle Bin at May 22 2012 0:31:09
  REPORT THIS POST AS INAPPROPRIATE |  Date May 21 2012 17:51:58

TANúñez

Posts: 2559
Joined: Jul. 10 2003
From: TEXAS

RE: About rosettes (in reply to Andy Culpepper

Nice old school rosettes. I dig em' Andy.

_____________________________

Tom Núñez
www.instagram.com/tanunezguitars
  REPORT THIS POST AS INAPPROPRIATE |  Date May 21 2012 18:28:29

Flamingrae



Posts: 218
Joined: May 19 2009


[Deleted]

Post has been moved to the Recycle Bin at Jun. 8 2012 0:51:17
  REPORT THIS POST AS INAPPROPRIATE |  Date Jun. 8 2012 0:45:27

Flamingrae



Posts: 218
Joined: May 19 2009


RE: About rosettes (in reply to Janne H

Ok just to add a few bits - some variations on what I'e done before and one because life is once and I can.







Images are resized automatically to a maximum width of 800px

Attachment (3)
  REPORT THIS POST AS INAPPROPRIATE |  Date Jun. 8 2012 0:58:31

tri7/5



Posts: 570
Joined: May 5 2012


RE: About rosettes (in reply to Andy Culpepper

The bottom one is definitely different but in a good way. I'd like to see that one a guitar to see how it flows with the rest of the instrument.
  REPORT THIS POST AS INAPPROPRIATE |  Date Jun. 8 2012 13:09:58

Andy Culpepper

Posts: 3002
Joined: Mar. 30 2009
From: NY, USA

RE: About rosettes (in reply to Andy Culpepper

Thanks Tom.
Nice ones Flamingrae, I like your designs a lot. Is the bottom one for a steel string?

Here's one that I made.. I might keep using it for a while. It kinda matches my headstock design.



Images are resized automatically to a maximum width of 800px

Attachment (1)

_____________________________

Andy Culpepper, luthier
http://www.andyculpepper.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Jun. 8 2012 13:20:05

Flamingrae



Posts: 218
Joined: May 19 2009


RE: About rosettes (in reply to Andy Culpepper

quote:

Is the bottom one for a steel string?


Thanks for the comps, Dyingsea and Andy. Good zigzag on the middle section Andy.

I can see why you might have thought that. I've just taken the middle out and put bracing in. It will be a blanca and it's really to go with some machine heads that I got last year. It might sound a bit corny, but we are in year of the dragon and last year I got machine heads with a dragon one side and a phoenix the other. The scaly design I've had for a while and have a few more up my sleeve. The rest of the guitar will have self bindings with some more of the green white purfling. I'm having a year of putting things together that are a bit out of the ordinary. I may never make anything like this again, but that is part of the fun. The trick is making it work with the rest and not over-egging the pudding. I'll maybe get around to making a plain guitar one day.
BTW. Top rosette is a standard, middle one is for a concert Uke
  REPORT THIS POST AS INAPPROPRIATE |  Date Jun. 9 2012 10:27:17

Gimar



Posts: 39
Joined: May 13 2012


RE: About rosettes (in reply to Andy Culpepper

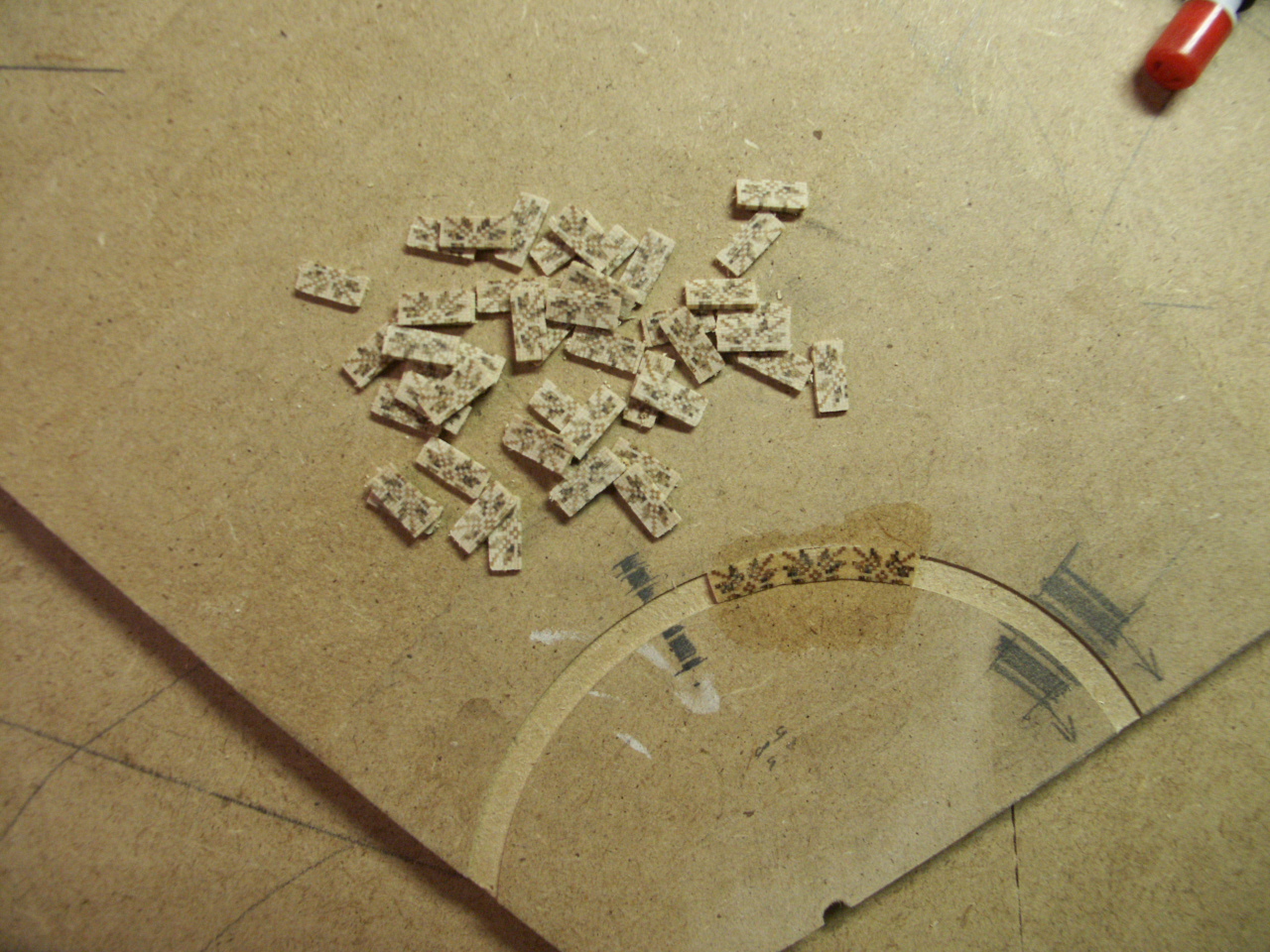

started my very first rosette a while ago, though it's not finished yet, here's where I'm at right now...



Images are resized automatically to a maximum width of 800px

Attachment (1)
  REPORT THIS POST AS INAPPROPRIATE |  Date Jun. 12 2012 21:51:36

Andy Culpepper

Posts: 3002
Joined: Mar. 30 2009
From: NY, USA

RE: About rosettes (in reply to Andy Culpepper

Gimar, I LOVE it man. It's not easy to get a complex tile perfectly aligned like that. Great design too. This thread is kinda like the falseta swap shop for luthiers now

_____________________________

Andy Culpepper, luthier
http://www.andyculpepper.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Jun. 12 2012 22:11:44

Flamingrae



Posts: 218
Joined: May 19 2009


RE: About rosettes (in reply to Gimar

Oh yes - once you have done your own there is no turning back. Nice one .....Go Go Gimar.
  REPORT THIS POST AS INAPPROPRIATE |  Date Jun. 13 2012 11:09:58

Gimar



Posts: 39
Joined: May 13 2012


RE: About rosettes (in reply to Andy Culpepper

thnx guys! I'll start a building thread in a while for my 2nd blanca.

I made some easy jigs to help me thickness the veneers and cut-off strip.
Basically i took a piece of wood, routed a 0,5mm deep channel, I then put a small violin makers plane on top while i pull the veneer strips out of the channel. Easiest way i could think of to make each strip the same thickness, also found that using a small plane works alof faster that a scraper.

and in the picture i posted you can see the jig i use to taper the tiles. I planed 1 side straight along the centre line of the rosette. I then place the tile in the channel, right agains the side, and the side sticking out i sand off with a simple sanding stick.
  REPORT THIS POST AS INAPPROPRIATE |  Date Jun. 13 2012 11:47:13

fm1328



Posts: 3
Joined: Jun. 15 2012


RE: About rosettes (in reply to Richard Jernigan

Stunningly beautiful ! Thanks for sharing it.
  REPORT THIS POST AS INAPPROPRIATE |  Date Jun. 15 2012 18:27:44

fm1328



Posts: 3
Joined: Jun. 15 2012


RE: About rosettes (in reply to Gimar

Well I definitely envy you. I've read and watched so many but never succeeded in building mosaics mentally let alone practically.
  REPORT THIS POST AS INAPPROPRIATE |  Date Jun. 15 2012 18:30:04

estebanana

Posts: 8672
Joined: Oct. 16 2009


RE: About rosettes (in reply to Andy Culpepper

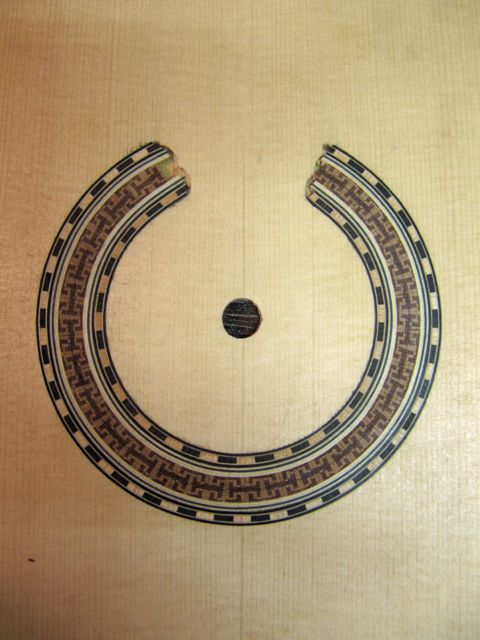

Here's an outtake photo from the next rosette video which should be edited and ready to show in a few days.
I'm going to go further into the inlay process.



Images are resized automatically to a maximum width of 800px

Attachment (1)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Aug. 17 2012 19:56:59

Leñador

Posts: 5237
Joined: Jun. 8 2012
From: Los Angeles

RE: About rosettes (in reply to Andy Culpepper

Cant wait for the video! The last one was great. Rosettes may as well be magic as far as I'm concerned.

_____________________________

\m/
  REPORT THIS POST AS INAPPROPRIATE |  Date Aug. 17 2012 20:33:25

ralexander

Posts: 797
Joined: Jun. 1 2010
From: Halifax, Nova Scotia

RE: About rosettes (in reply to Andy Culpepper

quote:

Cant wait for the video! The last one was great. Rosettes may as well be magic as far as I'm concerned.


haha +1

Just found out the rosette that Stephen posted above is all mine!! Muhahahahahah! Wow, I really love it These oud inspired rosettes are special IMO.
  REPORT THIS POST AS INAPPROPRIATE |  Date Aug. 18 2012 12:41:09

Flamingrae



Posts: 218
Joined: May 19 2009


RE: About rosettes (in reply to Janne H

Small batch of new ones for me using what I have to hand. Got a job lot of the herring bone binding so I made up some new tiles to go. Maybe a little dark overall, but it's all an ongoing process of variations upon a theme. Oh, and a simple soundport decoration which is a new direction - blimey they do push the sound up toward you.









Images are resized automatically to a maximum width of 800px

Attachment (4)
  REPORT THIS POST AS INAPPROPRIATE |  Date Feb. 4 2014 0:24:50

estebanana

Posts: 8672
Joined: Oct. 16 2009


RE: About rosettes (in reply to Andy Culpepper

Like rosette #2 a lot a good job putting the tiles and rim around the sound port, that is not easy on a compound curve surface. I like your feeling for dark colors, I'm going to go into grey-black-blue-silver soon.

I lifted this off the internet, but Manuel de la Chica is inspiring. His tile designs are nutty like tiny crossed golf clubs and stuffed doll crazy eyes.



Images are resized automatically to a maximum width of 800px

Attachment (1)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Feb. 4 2014 0:45:21

Flamingrae



Posts: 218
Joined: May 19 2009


RE: About rosettes (in reply to estebanana

Ok, cool Steve - thanks for the heads up on Manuel de la Chica. Yes, No2 is probably one of my favourites. Just wish I had used a half of herring bone in No1. The full herring is a bit too much, but you have to over push things sometimes to know when to stop. Thanks.
  REPORT THIS POST AS INAPPROPRIATE |  Date Feb. 4 2014 1:21:13

Anders Eliasson

Posts: 5780
Joined: Oct. 18 2006


RE: About rosettes (in reply to Flamingrae

Nice and creative rosettes. I like the symetrical things in the middle.

_____________________________

Blog: http://news-from-the-workshop.blogspot.com/
  REPORT THIS POST AS INAPPROPRIATE |  Date Feb. 4 2014 7:52:41

britguy

Posts: 712
Joined: Dec. 26 2010
From: Ontario, Canada

RE: About rosettes (in reply to Janne H

quote:


RE: About rosettes (in reply to Janne H)

I think most luthiers have experimented with natural wood and other non traditional rosettes. But a lot of us go back to traditional mosaic because it just looks right on the guitar IMO. and very simple mosaics can be very beautiful. They're challenging but fun to make.


I have always found traditional rosette designs ( and also headstocks) to be really intriguing.

Apart from the Romanillos book; are there any other books/ stuff/ (whatever?), around, showing traditional rosettes and headstocks?

_____________________________

Fruit farmer, Ontario, Canada
  REPORT THIS POST AS INAPPROPRIATE |  Date Feb. 10 2014 14:06:13

C. Vega



Posts: 379
Joined: Jan. 16 2004


RE: About rosettes (in reply to britguy

H
  REPORT THIS POST AS INAPPROPRIATE |  Date Feb. 10 2014 19:35:59

britguy

Posts: 712
Joined: Dec. 26 2010
From: Ontario, Canada

RE: About rosettes (in reply to Andy Culpepper

quote:

You might try the following books:

Sheldon Urlik - A Collection of Fine Spanish Guitars from Torres to the Present

Various authors - The Classical Guitar - A Complete History. Hardly a complete history but it has pictures. And yes people, it does have some info on flamenco guitars.

Luis F. Leal Pinar - Guitarreros de Andalucia and Guitarreros de Madrid

Amalia Ramirez - Jose Ramirez - 120 Aniversario. (Has pics of some guitars by other makers.)

Brian Whitehouse - The Ramirez Collection. (Again, more than just Ramirez guitars.)

All somewhat expensive books if you can find them except for the "complete history" which is available in paperback for $30 or less.
Your local library may be able to get the English language books through an interlibrary loan.


Great listing; thanks. Actually I tried to get the Urlik book through inter-library loans a while ago, but no luck!

But I might try a few of the others you listed?

_____________________________

Fruit farmer, Ontario, Canada
  REPORT THIS POST AS INAPPROPRIATE |  Date Feb. 10 2014 20:03:54

britguy

Posts: 712
Joined: Dec. 26 2010
From: Ontario, Canada

RE: About rosettes (in reply to Andy Culpepper

quote:

Your local library may be able to get the English language books through an interlibrary loan.


Just got a email back from our local steam-powered library.

Yes; they can get me the "Complete History" book on loan.

Great. Thanks!

_____________________________

Fruit farmer, Ontario, Canada
  REPORT THIS POST AS INAPPROPRIATE |  Date Feb. 10 2014 21:57:17

estebanana

Posts: 8672
Joined: Oct. 16 2009


RE: About rosettes (in reply to Andy Culpepper

Time to bump the rosette thread again:

Here is the top for my next Hauser model bracing.





Images are resized automatically to a maximum width of 800px

Attachment (2)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Oct. 26 2014 7:21:49

orsonw

Posts: 1666
Joined: Jul. 4 2009
From: London

RE: About rosettes (in reply to estebanana

Thanks for posting Stephen, a small central mosiac bordered red in a black field always works for me. Would that be referred to as Esteso style?

I know nothing of guitar building, but admire and enjoy the luthiers work including the decoration; I would be interested in the luthiers thoughts on the following:


I read somewhere that much of guitar decoration has a functional origin.

E.g. The inlaid rosette serves the purpose of reinforcement around the soundhole opening.

The purfling allows for easier joint separation, if the guitar ever needed a major repair requiring deconstruction.
  REPORT THIS POST AS INAPPROPRIATE |  Date Oct. 26 2014 11:26:13

jshelton5040

Posts: 1500
Joined: Jan. 17 2005


RE: About rosettes (in reply to orsonw

quote:

ORIGINAL: orsonw

I read somewhere that much of guitar decoration has a functional origin.

E.g. The inlaid rosette serves the purpose of reinforcement around the soundhole opening.

The purfling allows for easier joint separation, if the guitar ever needed a major repair requiring deconstruction.

Actually the rosette weekens the area around the sound hole hence the need for the cross grain backing on the inside. The cross grain is the real sound hole reinforcement and stiffener.

It's kind of accepted that "purfling" on guitars refers to the inlay at the bottom of the binding which would never line up with the joint between the sides and back or top. I think the binding is there for two purposes...purely cosmetic and as a hardwood bumper to protect the edges of the softwood top. Those edges generally take the most abuse when a guitar is inadvertently banged into things.

_____________________________

John Shelton - www.sheltonfarrettaguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Oct. 26 2014 17:15:36

estebanana

Posts: 8672
Joined: Oct. 16 2009


RE: About rosettes (in reply to orsonw

quote:

Thanks for posting Stephen, a small central mosiac bordered red in a black field always works for me. Would that be referred to as Esteso style?

I know nothing of guitar building, but admire and enjoy the luthiers work including the decoration; I would be interested in the luthiers thoughts on the following:


I read somewhere that much of guitar decoration has a functional origin.

E.g. The inlaid rosette serves the purpose of reinforcement around the soundhole opening.

The purfling allows for easier joint separation, if the guitar ever needed a major repair requiring deconstruction.


I have thought about rosette many times; I think by the time you add the reinforcement behind the rosette and glue a bar above a below it you have fixed the weakness John mentioned. But you have also created a two and three layered laminate area that almost always stops cracks from extending beyond the soundhole into the rest of the top. Imagine an spruce top with an 86mm wide hole and how a rip could start at that hole the break the top on that tear line. The laminate of the rose and all the backing patches keep that ripping from happening. Sometimes you see guitars with small cracks near the bridge side of the soundhole, with no horizontal bar, rosette lamination or backing under the rosette, what sold stop that from ripping until it hits the bridge?

In steel string repair work the binding is often the entry point for removal of a back, which is common restoration procedure for a guitar valuable enough to warrant that technique if needed to access the inside. Most people try to keep the back and top on, but in some cases it has to come off to do the correct restoration. My friend Stewart Port does high end restoration work on old steel strings, he almost always has a job going where he's removed the binding to do some kind of work. He can also get the same binding back on the guitar later then the top of back goes on. He's kind of a wizard. For Prewar Martin-Gibson guitars and mandolins to retain value collectors a dealers demand this ind of preservation in the restoration work. Most classical and flamenco makers don't have the same demands on them, but there are a few who do know how to take a binding off when they have to. But binding is there to protect the corners and seal the end grain, and John put it, they serve as bumpers. But secondary purpose would be to give access to taking the back off.

There area few things in Spanish building that enable makers to do easier repair work, some makers for example don't glue the ribs into the heel slot. There was probably a time when replacing a shattered rib meant cutting the broken rib out taking off half the binding and installing a new rib. Maybe there are some old guitars out there with mismatched ribs? Who knows?

One think is for certain, guitars, unlike violins were not engineered to come apart easy for repair work on the insides.

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Oct. 27 2014 0:59:07
Page:   <<   <   1 2 [3] 4    >   >>
All Forums >>Discussions >>Lutherie >> Page: <<   <   1 2 [3] 4    >   >>
Jump to:

New Messages No New Messages
Hot Topic w/ New Messages Hot Topic w/o New Messages
Locked w/ New Messages Locked w/o New Messages
 Post New Thread
 Reply to Message
 Post New Poll
 Submit Vote
 Delete My Own Post
 Delete My Own Thread
 Rate Posts


Forum Software powered by ASP Playground Advanced Edition 2.0.5
Copyright © 2000 - 2003 ASPPlayground.NET

6.201172E-02 secs.
