Binding JIG

Incorrigibly how I am, I have invested once more more time in a project than possibly necessary.

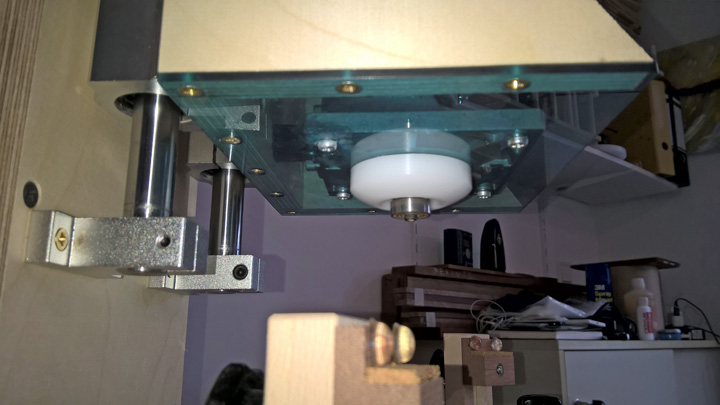

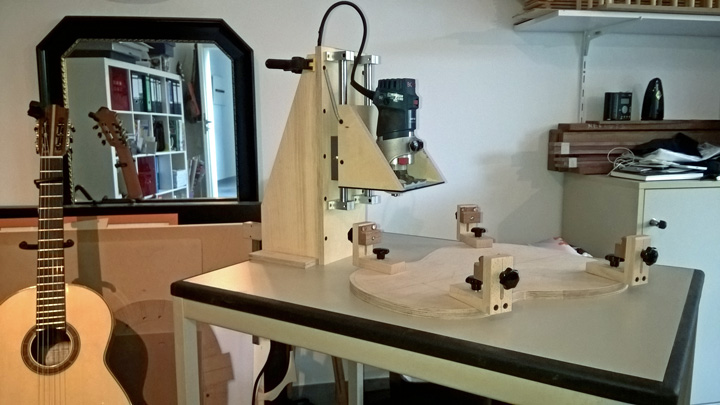

Now I have also build a Jig for routing the Bindings.

Now my question to the Luthiers here in the forum, who uses such an jig and how are your experiences?

Do you routing the whole binding channel or do you go in two or more steps to the final measurements? In this case you have to adjust the JIG and turn the Guitar a view times!
When I have still milled from hand, I have always made at least two steps.

Do you routing the step for the Purfling first?
It will be nice to her of your experiences, before I do this on my new build.





Images are resized automatically to a maximum width of 800px

Attachment (2)

_____________________________

Vince
http://www.gitarrenbau-held.de/
  REPORT THIS POST AS INAPPROPRIATE |  Date Sep. 13 2015 9:45:04

Morante



Posts: 2219
Joined: Nov. 21 2010


RE: Binding JIG (in reply to Vince

Why not use a simple fresadora? Set for the appropriate depth with the guitar in the solera, you can cut all 4 channels in 5 minutes.
  REPORT THIS POST AS INAPPROPRIATE |  Date Sep. 13 2015 16:06:30

Vince

Posts: 141
Joined: Oct. 21 2012
From: Germany

RE: Binding JIG (in reply to Vince

Hello Morante,
I have handcut the channels for a view years with an gramil and chisel.
Than I have used a laminate trimmer for a time. I build my guitars with an 15f dom at the back. With the jig I expect cleaner cuts perpendicularly over the binding length at the back.

In addition I love building jigs. Guitar building is my hobby, in my real life I'm working as an Ingenieur.

_____________________________

Vince
http://www.gitarrenbau-held.de/
  REPORT THIS POST AS INAPPROPRIATE |  Date Sep. 13 2015 19:25:13

Jeff Highland



Posts: 401
Joined: Mar. 5 2010
From: Caves Beach Australia

RE: Binding JIG (in reply to Vince

I do full depth cuts, binding then purfling. I use the climb cutting directions as per Stewmac, then go around the full perimeter anticlockwise
  REPORT THIS POST AS INAPPROPRIATE |  Date Sep. 13 2015 20:43:00

jshelton5040

Posts: 1500
Joined: Jan. 17 2005


RE: Binding JIG (in reply to Vince

I use a laminate trimmer with a 1/4" down spiral bit set very shallow (1mm or less) to make the initial cut then finish the binding slot with a binding jig similar to yours. This helps eliminate chipping.

By the way, nice job on the binding jig. You're a real craftsman.

_____________________________

John Shelton - www.sheltonfarrettaguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Sep. 13 2015 22:10:33

alcazaba



Posts: 28
Joined: Jun. 30 2013


RE: Binding JIG (in reply to Vince

I have used one of those for a while. They work well when you build the box detached from the neck, as I do most of the times. But I find the hand held router good enough, with the help of a file on some places.
  REPORT THIS POST AS INAPPROPRIATE |  Date Sep. 14 2015 1:37:01

Anders Eliasson

Posts: 5780
Joined: Oct. 18 2006


RE: Binding JIG (in reply to alcazaba

quote:

I find the hand held router good enough, with the help of a file on some places.


So do I.

_____________________________

Blog: http://news-from-the-workshop.blogspot.com/
  REPORT THIS POST AS INAPPROPRIATE |  Date Sep. 15 2015 8:05:01

Jeff Highland



Posts: 401
Joined: Mar. 5 2010
From: Caves Beach Australia

RE: Binding JIG (in reply to Vince

Well Vince, with such a nicely built jig, I think you will enjoy using it. I can see how some people are happy with handheld devices, it certainly saves space in the workshop, but having done channels with gramil, and with handheld router, and with a 1/4" spiral downcut bit, I am much happier with a tower style jig with the stewmac bit and bearing.
Especially since some of the instruments I build have more pronounced radiuses.
I just feel safer with the fixed router, and get results that do not need touching up.

One suggestion, do not press the body too hard against the bearing, it will leave tracks
  REPORT THIS POST AS INAPPROPRIATE |  Date Sep. 15 2015 21:31:50

jshelton5040

Posts: 1500
Joined: Jan. 17 2005


RE: Binding JIG (in reply to Jeff Highland

Jeff,
Re-read my post. I use a tower jig just like you, the down spiral bit in the hand held router is my way of avoiding chipping.

_____________________________

John Shelton - www.sheltonfarrettaguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Sep. 15 2015 23:07:55

Jeff Highland



Posts: 401
Joined: Mar. 5 2010
From: Caves Beach Australia

RE: Binding JIG (in reply to Vince

Not referring to your post John, just listing some of the different methods I have used.
  REPORT THIS POST AS INAPPROPRIATE |  Date Sep. 15 2015 23:19:22
