estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

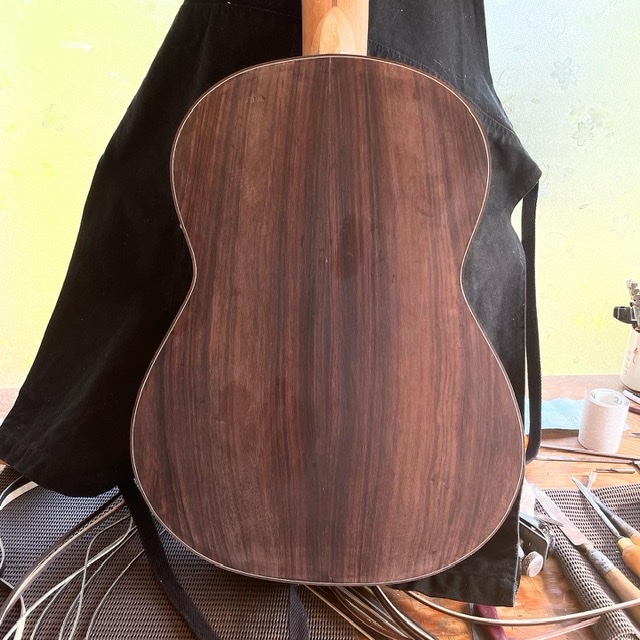

They were a pair under construction in July / August 2022



Images are resized automatically to a maximum width of 800px

Attachment (1)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Oct. 28 2022 2:00:52

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

This is a project I’m team building with a guitar maker in San Diego California
It’s a commission from an ethnomusicologist. The project is an electric Persian Tar, because the guy wants to play metal Persian music.

I designed it and built the body, it’s in San Diego now getting fitted with the electronics and frets.

Behold the Death Tar






Images are resized automatically to a maximum width of 800px

Attachment (1)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Oct. 28 2022 2:03:40

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

So I’ve been busy. And there’s this mess that needs attention…
A Calle’ model for gut strings that needs assembly









Images are resized automatically to a maximum width of 800px

Attachment (2)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Oct. 28 2022 2:11:56

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

I’m lost, thinking mode, I don’t know WTF I’m doing at the moment. So I’m taking the night off and throwing things up on the table to think about next year.

My small grisaille painting of a British WWII troop glider up there.



Images are resized automatically to a maximum width of 800px

Attachment (1)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Oct. 28 2022 10:53:29

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

Purfling and binding must be made for current guitars but it’s not going to get made tonight. Tomorrow I have to teach the community guitar ensemble class, eat lunch and come back here and clean it up so I can think about how these guitars will be bound. I usually have this stuff figured out in advance, not this time!

This is Kuwa wood native to Kyushu. I’m going to make a classical or flamenco with it next year. It’s damping quality is similar to Brazilian rose wood. Did I test it, no. I just felt like saying that…. 😂





Images are resized automatically to a maximum width of 800px

Attachment (2)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Oct. 28 2022 10:59:44

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

Last week was a wash, all I could get done was making enough binding and purfling for four guitars. So my next two after these are covered.

Yesterday, Saturday the 5th we had a city Bunkasai, culture festival. The jr. High brass band played hokey music for 80 years olds to groove to. ( not that your music is hokey R.J.) and the elementary kids played keyboards and recorders, drums and other annoying things. Several different kinds of Japanese folk dance clubs performed, to mix of live and canned music. And my guitar ensemble played. So I spent my extra time last week rehearsing them. But I got this binding /purfling smoothed out.





Images are resized automatically to a maximum width of 800px

Attachment (2)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 6 2022 8:03:31

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

Back on track, but I was a bit naughty schedule wise because I went fishing from 7 to 11 am in my friends boat. That didn’t help my deadline efforts…but caught a very plate-able grouper.
Locally a grouper like that is about 15 to 18 dollars during good weather, but in Tokyo that probably fetches upwards of 26 dollars or more.




Images are resized automatically to a maximum width of 800px

Attachment (2)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 6 2022 8:05:46

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

Joe Friday guitar making - just the facts ma’am ~





Images are resized automatically to a maximum width of 800px

Attachment (2)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 7 2022 3:57:05

Stu

Posts: 2092
Joined: Jan. 30 2007
From: London (the South of it), England

RE: Building two classicals on a dea... (in reply to estebanana

Thanks for posting all these pics stephen. I love a pic!

Looks lovely too. I like your rosette and your label!!

hahah sorry sounds like its the kind of comment one makes when they cant find anything nice to say......Ermm yes its interesting....I err ...erm... the strings are nice!

Nah it all looks great. I would be delighted if I was capable of producing such fine stuff
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 9 2022 11:34:01

ernandez R

Posts: 580
Joined: Mar. 25 2019
From: Alaska USA

RE: Building two classicals on a dea... (in reply to estebanana

Say, that binding looks remotely familiar?

How did you go about assembling yours?



Images are resized automatically to a maximum width of 800px

Attachment (1)

_____________________________

I prefer my flamenco guitar spicy,
doesn't have to be fast,
should have some meat on the bones,
can be raw or well done,
as long as it doesn't sound like it's turning green on an elevator floor.

www.instagram.com/threeriversguitars
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 9 2022 16:00:35

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

I don’t feel like writing much, but I’ll share a picture tutorial with a few tips.


I make the top purfling with this thing by lashing cord over the veneer strips, which creates a veneer ribbon about 3/4” wide.

I use an etching printers roller to spread the glue on the veneer. It’s important because it layers enough glue evenly and you don’t get dry spots that delaminate later.










Images are resized automatically to a maximum width of 800px

Attachment (2)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 10 2022 8:31:44

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

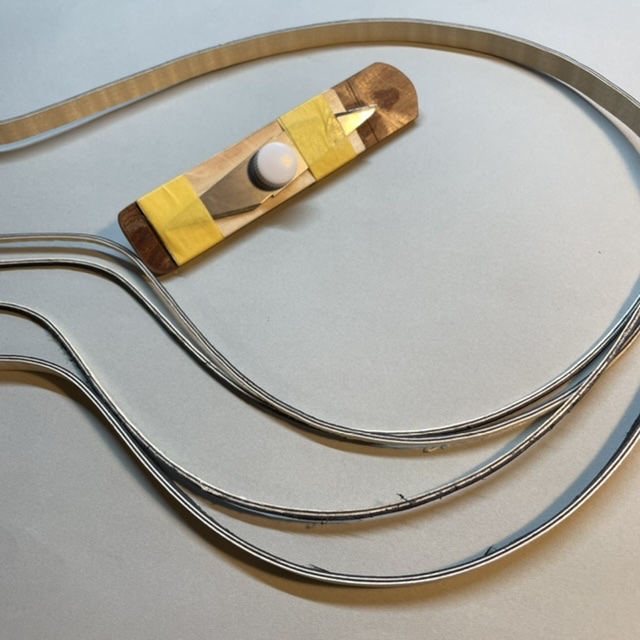

Next - I make these knives for slicing purfling off the ribbon. I run the knife on both sides and it takes about 4 minutes to skillfully make a purfling already bend and perfectly laminated. Clean up with small block plane.









Images are resized automatically to a maximum width of 800px

Attachment (4)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 10 2022 8:39:47

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

Next-

This ugly but useful tool cuts the line into the top. It’s a tool I have made copies of a few times, but I’m always dissatisfied with how cumbersome it is. Next iteration will be more sleek. But for what it is it’s ok.









Images are resized automatically to a maximum width of 800px

Attachment (4)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 10 2022 8:43:36

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

After that…..

I use a chisel. And how can you achieve an even channel depth just by eye?

Look at the side of the chisel and understand how deep the chisel is into the work. Use that as a gauge to keep the depth constant.

Then go back in with a small Warding pattern file and clean the vertical and horizontal surfaces of the channel at the same time. And keep in mind the thickness of the file. Making the channel the same depth as the file is thick gives a fairly overall evenly done purfling ledge.

This is where the difference is made between a crisp worker like job and a job that’s not as sharp. Get down on every Centimeter of this ledge and binding channel and fit a scrap section of binding and purfling to make sure you take down and micro obstructions.





Images are resized automatically to a maximum width of 800px

Attachment (2)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 10 2022 8:52:52

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

A bit more..

I use a router to hog out the rosette channel, but I score the circle first with this circle compas. Copy of a tool made by guitar maker in Israel named Matthew Masail.







Images are resized automatically to a maximum width of 800px

Attachment (3)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 10 2022 8:55:06

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

Random idea….

I mounted my go bar deck to the wall so I could store my junk under it.

But I mounted a light on it and the cool thing is the light goes on and off by hand motion.

Outside look at my dry room. There’s a dehumidifier in there and I build at 50 RH ~ not 62 or 70 😂





Images are resized automatically to a maximum width of 800px

Attachment (2)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 10 2022 9:03:05

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

You can see another veneer scraper too here:




_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 10 2022 9:08:29

davewphx

Posts: 86
Joined: Jul. 11 2011


RE: Building two classicals on a dea... (in reply to estebanana

The veneer scraper seems amazingly effective. Very simple and stable. I enjoyed the pictorial overview Stephen. Instrument building looks incredibly labor intensive. 👍

_____________________________

Dave
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 10 2022 22:20:37

ernandez R

Posts: 580
Joined: Mar. 25 2019
From: Alaska USA

RE: Building two classicals on a dea... (in reply to estebanana

Thanx for taking the time to show all that.

I made my binding the other way, 90 deg to yours, then sliced off strips vertically, then bent. The inner perfling strip I glued on the the binding first then on to the suitably routed rebate. Plenty of ways to skin this cat, oops did I say that ;)

HR

_____________________________

I prefer my flamenco guitar spicy,
doesn't have to be fast,
should have some meat on the bones,
can be raw or well done,
as long as it doesn't sound like it's turning green on an elevator floor.

www.instagram.com/threeriversguitars
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 10 2022 22:47:53

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to davewphx

Guitar making is all labor, and you can’t buy the tools in a store. You have to make several of them yourself.

I liken every hand made guitar as the equivalent of a three to four week long kitchen remodeling job. 😂

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 11 2022 2:12:19

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

And with this binding and purfling comes to a close.

Macassar is interesting. Sides taken consecutively from the flitch can show this much change between them. I love the asymmetry of the flitch with a glitch.



Images are resized automatically to a maximum width of 800px

Attachment (1)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 13 2022 6:02:20

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

Fingerboard time. Both bodies are rough scraped and tops sanded a bit. I’m anxious to get the fingerboards on and shape the necks and finish the headstock detailing. Because that means I can start putting shellac on them to prepare for pore filling.

One fingerboard is Macassar ebony and the other is black ebony, but I don’t know from where. One customer wants a 50 mm nut and the other 52 mm ~ here we go tomorrow morning



Images are resized automatically to a maximum width of 800px

Attachment (1)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 13 2022 10:15:46

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

I put the Macassar headstock veneer on the Macassar /Sakura body and the rosewood veneer on the rosewood body. I wish I had done it the other way around, because the Macassar fingerboard guitar has a lot of wood the looks the same. But then again because I used the Sakura back the unity of all the Macassar gives it continuity. I’m not going to worry further.





Images are resized automatically to a maximum width of 800px

Attachment (2)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 13 2022 10:21:29

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

Tools tools

More looks at tools.

Since I’m not the Gibson or Martin factory I never worked out a machine to slot fingerboards. I’ve always had some miter box gadget.

This is a miter box with a Japanese saw into which I’ve fashioned a depth stop.

Cat not included







Images are resized automatically to a maximum width of 800px

Attachment (2)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 15 2022 11:46:11

bftobin



Posts: 7
Joined: Oct. 22 2021


RE: Building two classicals on a dea... (in reply to estebanana

Thanks, I'm really enjoying this thread. You've given me a few ideas on hand tools. I have three types of ebony in my stash. The Macassar is easy to tell but the Indian and West African can be a little trickier. In my experience, the Indian is harder and more brittle, so a little sanding or planing and I check the surface.
Once again, thanks for all the pics of your process.

Brent
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 16 2022 1:54:48

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to bftobin

You’re welcome, and I’m glad a few people are interested.

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 16 2022 9:32:41

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

Marking off fret positions the homemade way ~

1- establish a 90 degree angle with the nut end of the board and one side

2- lock under a high quality meter rule

3- tick off fret positions with marking knife - I use Stew Mac online fret calculator app

4- index off 90 degree to nut side of board with fine quality square, score fret position with marking knife









Images are resized automatically to a maximum width of 800px

Attachment (4)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 16 2022 9:38:36

orsonw

Posts: 1666
Joined: Jul. 4 2009
From: London

RE: Building two classicals on a dea... (in reply to estebanana

quote:

I’m glad a few people are interested.


I am interested too. I enjoy your luthier threads, thanks for uploading them. I rarely post on these threads because I'm not a guitar maker so usually have nothing of value to add.
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 16 2022 10:24:30

Echi



Posts: 1003
Joined: Jan. 11 2013


RE: Building two classicals on a dea... (in reply to estebanana

Very nice thread Stephen, it's always a pleasure to see your work.
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 16 2022 11:20:04

estebanana

Posts: 8665
Joined: Oct. 16 2009


RE: Building two classicals on a dea... (in reply to estebanana

Thank you guys for following along.

20th fret? Such an interesting problem to resolve because there’s no standard traditional way of doing it. Only rule, make it look like you intended it.

It’s ok to pare down a neck at the end of the day when you’re only working by shop light after sundown. I stop there and wait until the next day because for me nothing is better than coffee and morning light to work on the final shape of a neck.





Images are resized automatically to a maximum width of 800px

Attachment (2)

_____________________________

https://www.stephenfaulkguitars.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Nov. 18 2022 10:10:02
Page:   <<   <   1 [2] 3 4    >   >>
All Forums >>Discussions >>Lutherie >> Page: <<   <   1 [2] 3 4    >   >>
Jump to:

New Messages No New Messages
Hot Topic w/ New Messages Hot Topic w/o New Messages
Locked w/ New Messages Locked w/o New Messages
 Post New Thread
 Reply to Message
 Post New Poll
 Submit Vote
 Delete My Own Post
 Delete My Own Thread
 Rate Posts


Forum Software powered by ASP Playground Advanced Edition 2.0.5
Copyright © 2000 - 2003 ASPPlayground.NET

0.0625 secs.
