Haithamflamenco

Posts: 926
Joined: Mar. 6 2007
From: Bahrain

RE: Yamaha C40 - extreme make over ... (in reply to Haithamflamenco

the smell of the super glue was so strong so I was using a breathing mask







btw I spoke shave the neck and I reduce its thickness, the was super thick

so I was adding the epoxy to fill the wood grain and to level the brushed stain, layer by layer and sanding between them after drying,

my friend didn't like any from the decal waterslide rossette , and I dont have the skills to add a real rosette , so i started to Photoshop the conde hermanos rosette !!









Images are resized automatically to a maximum width of 800px

Attachment (4)

_____________________________

Bahrain is my country and Andalucia is my dream
  REPORT THIS POST AS INAPPROPRIATE |  Date Jan. 5 2015 10:00:47

Haithamflamenco

Posts: 926
Joined: Mar. 6 2007
From: Bahrain

RE: Yamaha C40 - extreme make over ... (in reply to Haithamflamenco

so after wet sanding the epoxy I sprayed the NC sealer then I hand applied the NC lacquer,

I did all that in open area because the NC is very inflammable







Images are resized automatically to a maximum width of 800px

Attachment (3)

_____________________________

Bahrain is my country and Andalucia is my dream
  REPORT THIS POST AS INAPPROPRIATE |  Date Jan. 5 2015 10:34:25

Escribano

Posts: 5900
Joined: Jul. 6 2003
From: England

RE: Yamaha C40 - extreme make over ... (in reply to Haithamflamenco

It's good fun to hack a cheap guitar. I have done it to several electrics and you can learn a lot in the process. Keep us posted.

_____________________________

Foro Flamenco founder and Admin
  REPORT THIS POST AS INAPPROPRIATE |  Date Jan. 5 2015 17:54:04

SephardRick

Posts: 356
Joined: Apr. 11 2014


RE: Yamaha C40 - extreme make over ... (in reply to Haithamflamenco

Yeah! Like the boss just said. Most us have experimented and refinished factory made guitars to some extent...

I really admire your guts. You are doing what most of us players only think about doing.

I say damn the torpedo and run...Just publish the details both good and bad.

_____________________________

Rick
  REPORT THIS POST AS INAPPROPRIATE |  Date Jan. 5 2015 19:01:38

Haithamflamenco

Posts: 926
Joined: Mar. 6 2007
From: Bahrain

RE: Yamaha C40 - extreme make over ... (in reply to Haithamflamenco

ole amigos, thanks,

at this stage I was facing the difficulties in finishing,

I was using brushing lacquer (Minwax clear brushing lecqure ) but it was think and heavy to brush, so I thinned it with NC thinner and didn't really brush it but wipe it,

using the superglue as a grain filler was not a good idea, its super glue is very thin you need maybe 20 superglue to file the back only, but it works good as sealer for the lacquer,

so I was wiping the thinned lacquer and leave it to dry and wet sanding between ,







I was working for long time on the finsihing, at the end I couldnt reach the glossy finsih I was looking for, I didnt have a buffer wheel so I was using my car polisher and dimond cut polish ,

I printed the rossete on a glosse self adhsive paper and I stick it on the top and I will cover later with the golpe

Images are resized automatically to a maximum width of 800px

Attachment (3)

_____________________________

Bahrain is my country and Andalucia is my dream
  REPORT THIS POST AS INAPPROPRIATE |  Date Jan. 7 2015 6:13:46

Haithamflamenco

Posts: 926
Joined: Mar. 6 2007
From: Bahrain

RE: Yamaha C40 - extreme make over ... (in reply to Haithamflamenco

I installed the golpe over the top and the top of the printed rossete,

and installed a golden machine









Images are resized automatically to a maximum width of 800px

Attachment (4)

_____________________________

Bahrain is my country and Andalucia is my dream
  REPORT THIS POST AS INAPPROPRIATE |  Date Jan. 7 2015 6:31:04

Haithamflamenco

Posts: 926
Joined: Mar. 6 2007
From: Bahrain

RE: Yamaha C40 - extreme make over ... (in reply to Haithamflamenco

final, still need some touch up









Images are resized automatically to a maximum width of 800px

Attachment (4)

_____________________________

Bahrain is my country and Andalucia is my dream
  REPORT THIS POST AS INAPPROPRIATE |  Date Jan. 7 2015 6:41:18

Haithamflamenco

Posts: 926
Joined: Mar. 6 2007
From: Bahrain

RE: Yamaha C40 - extreme make over ... (in reply to Haithamflamenco

more photos,

I apologise I didnt take a good photo afte I finsih the guitar,

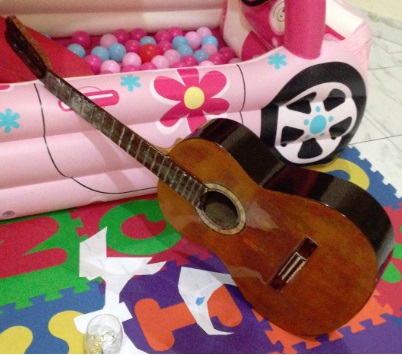

below is the before and after photo




ok,

what I did to the guitar is:

1.stripping the poly paint and refinsih the guitar with differnt color and NC lecque

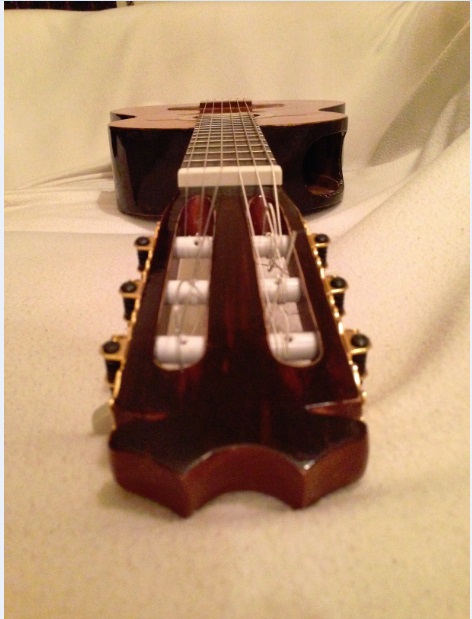

2. modfy the head stock look like conde hermanos medi luna.
3. lower the action by lowering the bone saddel and the bridge.
4. reduce the thickness of the neck.
5.open a sound port.
6. add golpe.
7. stick a conde hermanos rose type rossete.
8. replace the machine head tunners.
9. add flamenco strings medium/hard
10. frets leveling.

difficulties:

1. removing the original finshin was the worst, its very hard and there is a thick layer ander the stain , Ibilive its a sealer, the paint remover couldnt remove it.
2. I faild to cut the sound port in oval shap like some flamenco guitar I dont want to mention its name , so I end up with an oversize soundport.
3. filling the open grain was a night mare, using superglue is a filler is bad idea, but the super is medium is good.
4. couldnt reach the shiny glossy finsih, lag to tools and machines

Images are resized automatically to a maximum width of 800px

Attachment (4)

_____________________________

Bahrain is my country and Andalucia is my dream
  REPORT THIS POST AS INAPPROPRIATE |  Date Jan. 7 2015 8:17:17

Haithamflamenco

Posts: 926
Joined: Mar. 6 2007
From: Bahrain

RE: Yamaha C40 - extreme make over ... (in reply to Haithamflamenco

some videos from my frined account M. Jabbari a talnted guitarist from bahrain :






http://instagram.com/p/wlM5BmoN5w/

http://instagram.com/p/xNPl9gINw9/

http://instagram.com/p/wfn4rzIN3d/


and the arabic/turkish mode that he inlove with:

http://instagram.com/p/xaZwEAIN_A/

and this is his channel on instegram:

http://instagram.com/jabbarim/

and this is my channel in instegram:

http://instagram.com/bahrainguitarshop/

Images are resized automatically to a maximum width of 800px

Attachment (1)

_____________________________

Bahrain is my country and Andalucia is my dream
  REPORT THIS POST AS INAPPROPRIATE |  Date Jan. 7 2015 8:30:40

Ricardo

Posts: 11097
Joined: Dec. 14 2004
From: Washington DC

RE: Yamaha C40 - extreme make over ... (in reply to Haithamflamenco

I always thought the C40 sounded darn good in the music store. This one sounds like a good conde!

_____________________________

CD's and transcriptions available here:
www.ricardomarlow.com
  REPORT THIS POST AS INAPPROPRIATE |  Date Jan. 7 2015 17:18:23

SephardRick

Posts: 356
Joined: Apr. 11 2014


RE: Yamaha C40 - extreme make over ... (in reply to Haithamflamenco

So, Mr. H...

Tell me more about the whale hole (sound port) that you added. Are you pleased with the sound when practicing alone? Do you hear a difference?

_____________________________

Rick
  REPORT THIS POST AS INAPPROPRIATE |  Date Jan. 7 2015 21:44:38

Flamingrae



Posts: 190
Joined: May 19 2009


RE: Yamaha C40 - extreme make over ... (in reply to Haithamflamenco

Wow, you have done loads and if this is your first go at this, you have done well.
I eventually got around to doing my Alhambra. Different approach to what you have done but some of the same difficulties so you can check these off for "your next project"

Removal of laquer - heat gun not paint stripper
Removal of back and about 10/12mm of the rib height. (It was a classical)
Lighten and re-shape internal bracing on the front and back.
Once back is back on, route and install proper bindings.
Re shape bridge - lower tie block, convert to 12 holes, add bone fittings and saddle.
Re shape heel then French polish the body.

I might have done more but when I discovered that the wood (if you can call it that) was laminate, I held fire.
Still pleased I did this and I'm sure you must notice a difference with your guitar. Loved the solution to the conde rosette - might have to watch copyright on that though.
  REPORT THIS POST AS INAPPROPRIATE |  Date Jan. 7 2015 23:38:43

Haithamflamenco

Posts: 926
Joined: Mar. 6 2007
From: Bahrain

RE: Yamaha C40 - extreme make over ... (in reply to Haithamflamenco

quote:

I always thought the C40 sounded darn good in the music store. This one sounds like a good conde!


ricardo maybe sounded like a bad conde

quote:

So, Mr. H. Tell me more about the whale hole (sound port) that you added. Are you pleased with the sound when practicing alone? Do you hear a difference?


yes rick, as I said , it was my friend requested to make an oval shape, but I failed to make oval using a wring saw, I know is big, usually I make the sound port for this fully plywood c40 guitar about 2.5inch diameter , and its really making a different

here a video for a Yamaha c40 before the sound port

http://instagram.com/p/s_l9aqsgZ8/




after the sound port

http://instagram.com/p/s_mbWEsgaX/

the actual guitar in this post is fine with this big hole, but know I am considering to make a sliding door for it, so he can adjust the size of the port.

BTW I saw half section cut classical guitar in guitar shop in bahrain, Manuel rodregiz and still sounded good ,





this is the usual size i cut



quote:

I might have done more but when I discovered that the wood (if you can call it that) was laminate, I held fire.
Still pleased I did this and I'm sure you must notice a difference with your guitar. Loved the solution to the conde rosette - might have to watch copyright on that though.


flaminrae - thanks, woow, French polish amazing ,I wich checked out earlier that your guitar is laminated, dont worry about copy right, its just one project the son of mariano is following me in instgram and he didnt like those photos

Images are resized automatically to a maximum width of 800px

Attachment (1)

_____________________________

Bahrain is my country and Andalucia is my dream
  REPORT THIS POST AS INAPPROPRIATE |  Date Jan. 8 2015 7:17:25

SephardRick

Posts: 356
Joined: Apr. 11 2014


RE: Yamaha C40 - extreme make over ... (in reply to Haithamflamenco

quote:

I am considering to make a sliding door for it, so he can adjust the size of the port.


What a novel idea. An adjustable sound port to fine tune the port volume.

Thanks for sharing your results! I can't tell you how many times I wanted experiment with sound ports, but never got around to it.

_____________________________

Rick
  REPORT THIS POST AS INAPPROPRIATE |  Date Jan. 8 2015 16:20:54
Guest

[Deleted] (in reply to Haithamflamenco

[Deleted by Admins]
  REPORT THIS POST AS INAPPROPRIATE |  Date Mar. 28 2016 15:44:32

Haithamflamenco

Posts: 926
Joined: Mar. 6 2007
From: Bahrain

RE: Yamaha C40 - extreme make over ... (in reply to Guest

quote:

this is a good post i have a yamaha cg122 these are solid top classical guitars they come in spruce top or cedar they have a super lightweight body lighter than any other yamaha classical model i have seen with a matt finnish and a standard 3mm at the 12th fret the bridge can be taken down a huge amount but i have only adjusted the saddle so far the string height to the body of the guitar at the bridge could go as low at 1 cm without any problem. for a guitar i already have this will be a good flamenco conversion i did plan to buy a proper flamenco but were i stay in a huge city there are no proper examples of a good cheap flamenco guitar.


go for it and enjoy

_____________________________

Bahrain is my country and Andalucia is my dream
  REPORT THIS POST AS INAPPROPRIATE |  Date Mar. 29 2016 6:06:35

fyr4efect



Posts: 50
Joined: Apr. 6 2014
From: Arizona

RE: Yamaha C40 - extreme make over ... (in reply to Haithamflamenco

Wow. What a project !
Doing something similar to a Yam SF 172. Like you I figured "what the hell"
Sanded it today, mixed the FP crystals with alcohol today and will start FP tomorrow.
Didn't know the rosette was a decal until the sander took it right off.
Kinda like putting a chandelier in a mobile home but its fun.
Been years since I did any FP.
The rosette decal cost 5.95.
Cheers

Attachment (1)
  REPORT THIS POST AS INAPPROPRIATE |  Date Apr. 5 2016 1:44:32

Erixon



Posts: 7
Joined: Nov. 28 2015
From: Forest of Dean, UK

RE: Yamaha C40 - extreme make over ... (in reply to Ricardo

Same here Ricardo, I used to own a CG130A back in late '90 and the guitar sounded like a crystal. Well balanced instrument. I can't believe I have let that guitar slip out of my hands... I ended up having to sell the guitar...

_____________________________

  REPORT THIS POST AS INAPPROPRIATE |  Date Apr. 9 2016 12:42:46

Erixon



Posts: 7
Joined: Nov. 28 2015
From: Forest of Dean, UK

RE: Yamaha C40 - extreme make over ... (in reply to Haithamflamenco

Love your makeover project Haitham, but I could use a soundbite, how it actually sounds. Can you upload a soundsample so I could hear what you have done?
I have done a similar "makeover/repair/reconstruction", although with a high end guitar - I took a big risk - all or nothing - with a vintage andalusian blanca. I have to say the process was a bit longer, I had to struggle with lack of time and finances, but at the end it has paid off very well. With one difference, I left my J.L.Bellido as it was and did not carve medialuna semi-circle into its head, lol :)
So I understand why people do such makeovers, specially when there is nothing to loose but only gain and during the process they learn a whole lot about the construction and see how things work.
Cheers mate.

_____________________________

  REPORT THIS POST AS INAPPROPRIATE |  Date Apr. 9 2016 13:06:20
Page:   <<   <   1 [2]
All Forums >>Discussions >>Lutherie >> Page: <<   <   1 [2]
Jump to:

New Messages No New Messages
Hot Topic w/ New Messages Hot Topic w/o New Messages
Locked w/ New Messages Locked w/o New Messages
 Post New Thread
 Reply to Message
 Post New Poll
 Submit Vote
 Delete My Own Post
 Delete My Own Thread
 Rate Posts


Forum Software powered by ASP Playground Advanced Edition 2.0.5
Copyright © 2000 - 2003 ASPPlayground.NET

0.09375 secs.
